80444,  µ-Slide 4 Well Ph+ Poly-L-Lysine: #1.5 polymer coverslip, sterilized,  15 Pcs/box

80444, µ-Slide 4 Well Ph+ Poly-L-Lysine: #1.5 polymer coverslip, sterilized, 15 Pcs/box

80447,  µ-Slide 4 Well Ph+ Glass Bottom: #1.5H (170 µm +/- 5 µm) D 263 M Schott glass, sterilized,  15 Pcs/box

80447, µ-Slide 4 Well Ph+ Glass Bottom: #1.5H (170 µm +/- 5 µm) D 263 M Schott glass, sterilized, 15 Pcs/box

80446, µ-Slide 4 Well Ph+ ibiTreat: #1.5 polymer coverslip, tissue culture treated, sterilized, 15 Pcs/box

1.178,10 RON

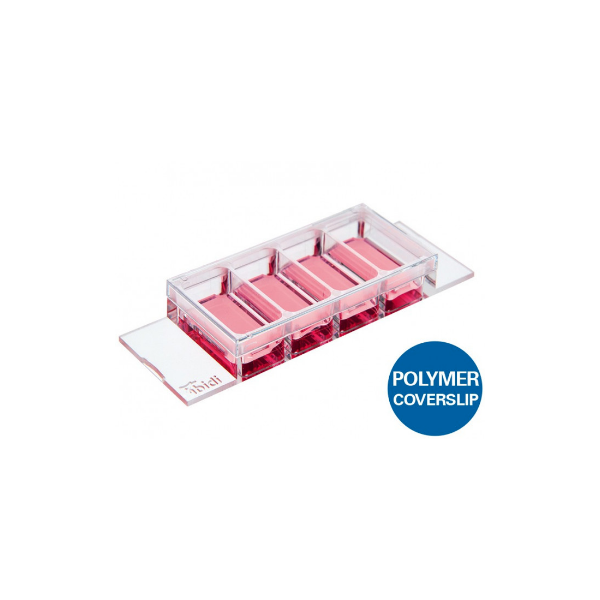

A chambered coverslip with 4 wells and a special intermediate plate for excellent phase contrast and high-end fluorescence microscopy

SKU
IBI_80446

A chambered coverslip with 4 wells and a special intermediate plate for excellent phase contrast and high-end fluorescence microscopy

  • Excellent phase contrast over the entire well–no meniscus
  • All-in-one chamber slide used for cell culture and microscopy
  • Observation of the sample through the polymer coverslip bottom using high resolution microscopy
  • Fast and easy immunofluorescence, with no coverslips and no leakage



Specifications

Outer dimensions (w x l)

25.5 x 75.5 mm²

Number of wells

4

Dimensions of wells
(w x l x h)

21.6 x 11.4 x 9.3 mm³

Volume per well

700 µl

Liquid height

3.0 mm

Total height with / without lid

10.8 / 9.5 mm

Growth area per well

2.5 cm²

Coating area per well

5.9 cm²

Bottom

ibidi Polymer Coverslip



Technical Features

  • Open µ-Slide with 4 independent wells
  • Intermediate plate in each well to avoid meniscus formation
  • Easy filling, without air bubbles, through the lateral slot
  • Excellent optical quality for high end microscopy
  • Ph+ feature for perfect phase contrast—no meniscus formation
  • Compatible with staining and fixation
  • ibiTreat surface for optimal cell adhesion
  • Made of biocompatible plastic material – no glue and no leaking
  • Also available with a glass bottom
Mai multe informatii
Price 990,00 RON (preturile sunt fara TVA)
Description

A chambered coverslip with 4 wells and a special intermediate plate for excellent phase contrast and high-end fluorescence microscopy

  • Excellent phase contrast over the entire well–no meniscus
  • All-in-one chamber slide used for cell culture and microscopy
  • Observation of the sample through the polymer coverslip bottom using high resolution microscopy
  • Fast and easy immunofluorescence, with no coverslips and no leakage



Specifications

Outer dimensions (w x l)

25.5 x 75.5 mm²

Number of wells

4

Dimensions of wells
(w x l x h)

21.6 x 11.4 x 9.3 mm³

Volume per well

700 µl

Liquid height

3.0 mm

Total height with / without lid

10.8 / 9.5 mm

Growth area per well

2.5 cm²

Coating area per well

5.9 cm²

Bottom

ibidi Polymer Coverslip



Technical Features

  • Open µ-Slide with 4 independent wells
  • Intermediate plate in each well to avoid meniscus formation
  • Easy filling, without air bubbles, through the lateral slot
  • Excellent optical quality for high end microscopy
  • Ph+ feature for perfect phase contrast—no meniscus formation
  • Compatible with staining and fixation
  • ibiTreat surface for optimal cell adhesion
  • Made of biocompatible plastic material – no glue and no leaking
  • Also available with a glass bottom
